Msq 30/40/60 Three Phase Current Transformer with Split Core 300/5A Low Voltage 220V/110V Output for Current Measurement
1
2
3
4
5
Output Voltage :110 V, 220 V
Input Voltage :380 V
Application :Power, Industrial Power Supplies
Certification :CE ROHS
Accuracy Class :0.5, 1.0
Brand Name :OEM
Efficiency :0.98
Coil Structure :Toroidal
Product name :MSQ Current Transformer
Rated Insulation Level :0.66/3 KV
Phase :Three Phase
Model Number :MSQ-40 300/5A
MOQ :1500 pieces
Power :2 kW(2.68hp)
Place of Origin :Zhejiang, China
Material :Aluminum, Steel , Copper, Resin, Cast Resin
Rated Transformation ratio :15~3000/5A
Coil Number :Single Winding
Type :bus-bar type
Price :$2 / piece
Frequency :50 Hz, 60 Hz, 50Hz/60Hz
Operating temperature :-25℃~+50℃
Standard :IEC60076
Contact Now
MSQ series type Current Transformer MSQ-30 / MSQ-40 / MSQ-60 / MSQ-100 / MSQ-125
Product Description
Uses and applications:
MSQ range of current transformers can be applied to test,control,display and record the running of the electrical equipment,and to protect the equipment against the damage,in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.
This MSQ series of CT can be applied to test,control.display and record the running of the electrical equipment,and to protect the equipment against the damage.In the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz.The product can be also applied to form a complete set of mine transformer.The products comply with IEC -185 standard.
Features:
1. Safe. Easy to install, porttable 2. Wide inner window, allowing clamping of big cables or bus-bars 3. Wide range of sizes to accommodate all the existing installations
Application:
1. Current measurement, monitoring and protection for electrical wiring and equipment. 2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system. 3. Current, power and energy monitoring device. 4. Relay protection device.
Technical Specification:
Electrical Parameter
Mechanical Parameter
Frequency
50/60Hz
Case
PC/UL94-V0
Rated Input
1A-5000A
Bobbin
PBT
Measuring range
5%In-120%In
Core
Silicon steel
Rated Output
1A,5A
Construction
Screw
Ratio Voltage
0.72KV (AC)
Operating Temp
-25℃~+75℃
Dielectric strength
3.0KV/1mA/1min
Operating Humidity
≤85%
Insulation Resistance
DC500V/100MΩ min
Output Connection
Terminal
Technical Parameter:
Model
Primary / Secondary
Busbar Hole Dimensions(mm)
Rated Burden (VA)
Accuracy Class
Rated Voltage
MSQ-30B
5/5A~300/5A
busbar
5~7.5
0.5 / 1.0
0.72KV(AC)
MSQ-30
30/5A~300/5A
φ=30mm
2.5~10
0.5 / 1.0
0.72KV(AC)
MSQ-40
100/5A~500/5A
φ=40mm
2.5~10
0.5/1.0
0.72KV(AC)
MSQ-60
250/5A~1600/5A
φ=60mm
5~15
0.5/1.0
0.72KV(AC)
MSQ-85
750/5A~2000/5A
φ=85mm
5~15
0.5/1.0
0.72KV(AC)
MSQ-100
800/5A~3000/5A
φ=100mm
5~15
0.5/1.0
0.72KV(AC)
MSQ-125
1000/5A~6000/5A
φ=125mm
5~20
0.5/1.0
0.72KV(AC)

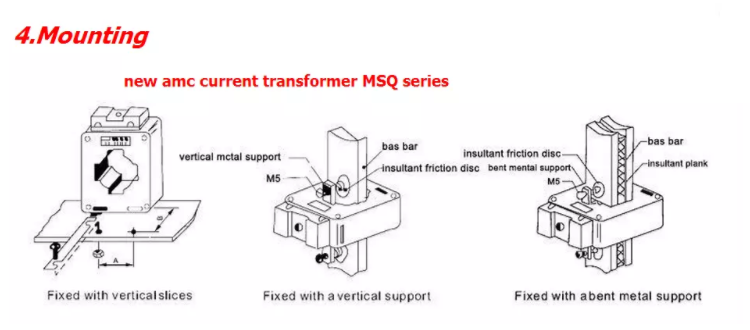

Overall Dimension Drawing:

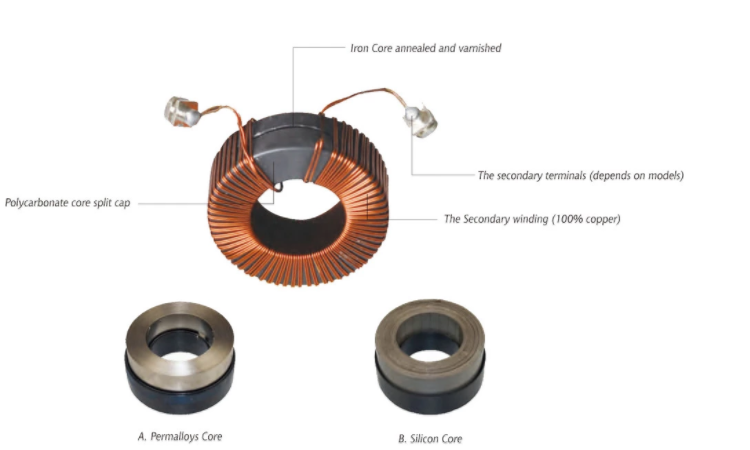

Inside Structure Parts Details Images:
CT consist of primary winding, secondary winding, magnetic core and insulated body. The high-grade silicon steel core is annealed, varnished then insulated with polycarbonate core caps. The secondary winding is toroidally wound by high precision semi-automatic machinery. For the tape wound ring type current transformer, the PEW coated windings are then covered with elephantite paper, varnished and double-tapped with PVS tapes. For the encapsulated type current transformer, the windings are enclosed in a compact and heat resistant split cap.
1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.
2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.
3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.
